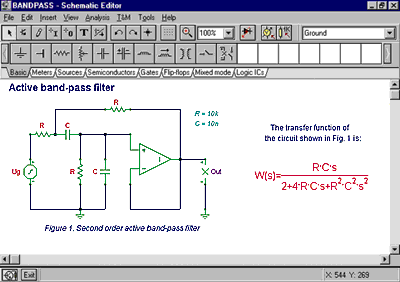

| Symbolic analysis
produces the closed form expression of the
transfer function, equivalent resistance,
impedance, or response of analog linear networks.
In DC and AC analysis mode, TINA
derives formulas in full-symbolic or
semi-symbolic form. In transient analysis, the
response is determined as a function of time.
Circuit variables can be referenced either as
symbolic names or by value on a
component-by-component basis. Through symbolic
analysis, poles and zeros of linear circuits can
be calculated and plotted. You can efficiently
prepare classroom or textbook materials by
printing or by copying and pasting your
expressions to any Windows program.
